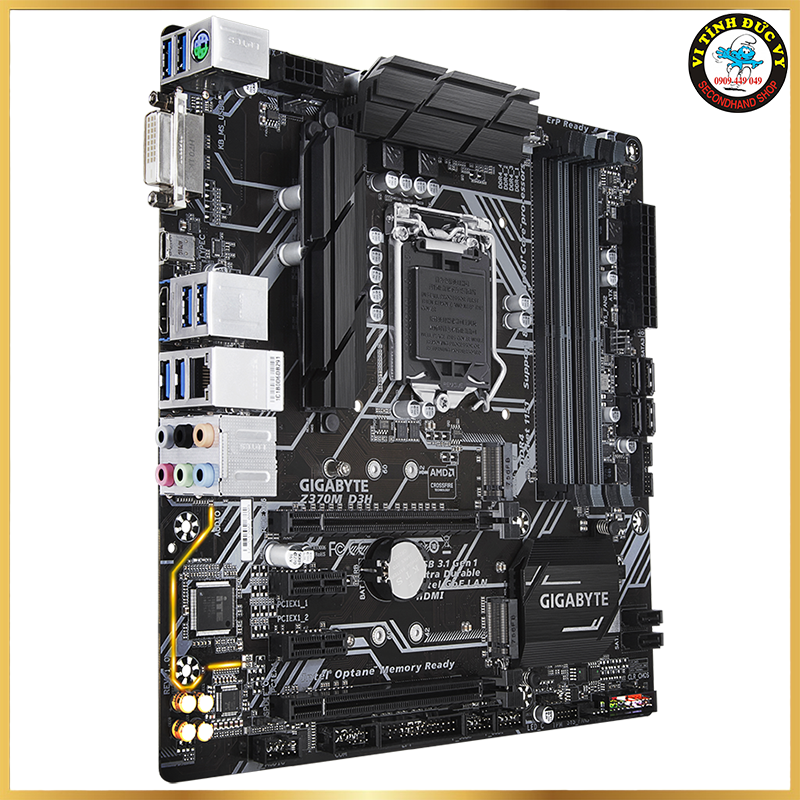

Gigabyte Z370M-D3H
1,600,000 VNĐ
CPU
  1. Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
  2. L3 cache varies with CPU
ChipsetIntel® Z370 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Audio
  1. Realtek® ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LANIntel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics TechnologySupport for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

USB
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
  2. 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB headers)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x RGB LED strip header
  6. 6 x SATA 6Gb/s connectors
  7. 2 x M.2 Socket 3 connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x S/PDIF Out header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x parallel port header
  16. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x HDMI port
  4. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
  5. 6 x USB 3.1 Gen 1 ports
  6. 1 x RJ-45 port
  7. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
